Older Ariens Deluxe 24 Keeps Breaking Shear Bolts: What to Check First
A legacy-model checklist that treats repeated shear-bolt failure as overload evidence and keeps 921024 and 921045 manual details separate.
Applies to Deluxe 24 legacy (921024 / 921045)
Identifiers: 921024 · 921045 · Deluxe 24
Guide scope: This guide covers two legacy identities, 921024 and 921045, but they do not share every manual detail. Manual 04855000D covers 921024 where matched; manual 05135600C provides the 921045-generation OEM shear-bolt instructions below. Apply the 921045 torque figure only after confirming that manual/model/serial match.
Legacy coverage uses Ariens manuals 04855000D, 05135600C and 09365530 only where the exact model/serial range matches.

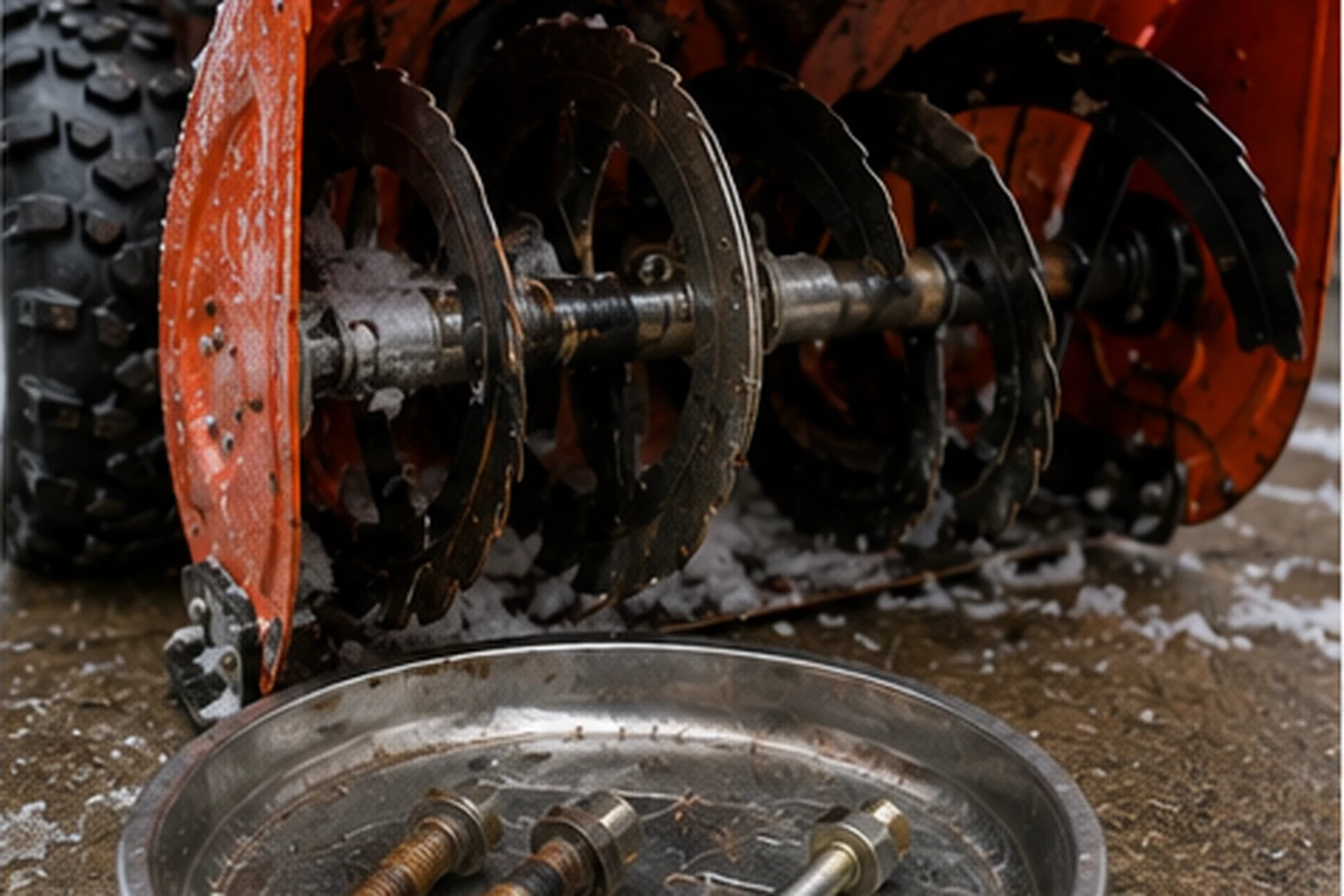

Repeated shear-bolt failure should trigger checks for jammed/frozen auger components, wrong hardware and model-specific installation before assuming the gearcase is bad or substituting a stronger bolt.
Remove the key and spark-plug lead and wait for all movement to stop before touching auger hardware.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Exact model and serial
Why this check: Ariens reused Deluxe 24 across generations with different manuals and service ranges.
What to do: Read the frame identification label and select the operator/service manual for that exact machine before buying shear hardware or using a torque value.
Find the overload before installing another bolt
Why this check: Ariens troubleshooting for the 921045 generation includes auger/impeller obstruction, frozen components and broken shear bolts as related snow-handling failures.
What to do: With the machine safely disabled, remove ice/debris and verify the auger/impeller are not physically bound. Repeatedly replacing bolts without clearing the load can reproduce the failure immediately.
Use OEM-specified shear hardware
Why this check: The shear bolt is intentionally sacrificial; a stronger generic bolt can transfer impact into shafts or the gearcase.
What to do: Use the Ariens-specified shear bolt for the exact model. Do not substitute a grade-8 or other hardened fastener simply because the correct bolt keeps failing.
For matched 921045, install to its manual instruction
Why this check: Ariens manual 05135600C gives an installation torque of 7.9–16.5 N·m (5.8–12.2 lb-ft), alternatively tightening until the bolt no longer spins freely, and warns not to overtighten.
What to do: Use that figure only on a 921045 machine covered by the matched manual. Do not copy it to 921024 or another Deluxe 24 generation without its own manual support.
Inspect shaft condition and required lubrication
Why this check: Corrosion, a seized auger on the shaft or neglected model-specified lubrication can increase load on the shear connection.
What to do: Follow the matched legacy manual’s shaft/lubrication procedure and keep grease away from belts and friction-drive surfaces.
Stop if a correct bolt fails unloaded
Why this check: A correct bolt that shears immediately with a clear, free attachment is evidence for binding, misalignment or deeper driveline damage.
What to do: Do not consume more shear pins. Preserve the model/serial and failure pattern for model-specific service/gearcase inspection.
How to read this symptom on this model
Repeated shear-bolt failure is not a bolt-strength problem until proven otherwise. On a legacy Deluxe 24, the bolt is intended to protect more expensive auger/drive components when an obstruction stops rotation. Ariens manual 05135600C for the matched 921045 generation explicitly says to replace the shear bolts if an obstruction stops auger rotation and the bolts break. The practical consequence is clear: remove the obstruction and prove the attachment is free before installing the next correct bolt.
The Deluxe 24 name spans 921024, 921045 and newer machines, so manual identity is part of this repair. The 921045-generation 05135600C instructions cannot automatically be applied to 921024. Conversely, using a current 921069 torque or part because the housing still says “Deluxe 24” is exactly the generation-mixing error this site is designed to avoid.
For a 921045 machine covered by 05135600C, Ariens specifies 7.9–16.5 N·m (5.8–12.2 lb-ft) for the shear-bolt installation, or tightening until the bolt no longer spins freely, and warns not to overtighten. That is a useful installation endpoint only after the model/manual match is established. Excess torque is not a cure for repeated failure.
Failure timing tells you where to look. A bolt that breaks only after an obvious impact may simply have performed its protective job. A bolt that breaks every time the attachment is engaged, even with no snow, is evidence of binding, frozen components, misalignment or deeper driveline trouble. A bolt that survives unloaded operation but fails in normal snow suggests the load path still needs inspection.
Shaft condition matters too. Corrosion or a seized auger on the shaft can increase stress, and legacy maintenance information includes auger-shaft lubrication where specified. The goal is free mechanical movement with the correct sacrificial fastener—not a permanently rigid connection.
Repeated shear-bolt failure is an overload clue, not a request for a stronger bolt. With the older Deluxe 24 fully disabled, inspect the auger housing for packed ice, a lodged object and a section that does not move freely after the obstruction is removed. Also compare the shaft and auger section for obvious misalignment or impact damage. If the correct Ariens shear hardware fails again immediately with the snow path clear, stop powered testing; the protective fastener is telling you that load remains somewhere deeper in the attachment.
Legacy-model identity matters most when replacement hardware is selected. A bolt that physically fits the hole is not proof that it has the intended shear characteristics. Match the six-digit model and the correct older manual before ordering the fastener, then install it only after the overload has been removed. Substituting a hardened hardware-store bolt can transfer the impact into the gearbox, shaft or auger instead of allowing the designed sacrificial point to fail.
When the bolt breaks only under snow load, compare that event with a no-load check after the housing is cleared. A freely moving attachment that survives a brief no-load test but shears again as soon as one auger section enters snow points to a load or alignment problem that only appears under torque. Stop there rather than moving to stronger hardware. The repeat pattern—same side or both sides, immediately after impact or only under feed—should be written down with the exact legacy model number because it helps separate a local auger bind from a broader attachment problem.
Before you order parts
Before buying a gearcase, inspect for ice, rocks, packed debris and a frozen impeller/auger with the machine disabled. If the attachment cannot move through the matched manual’s inspection procedure, the repeated bolt breakage already has a plausible external cause.
Before buying generic fasteners, confirm the Ariens OEM shear hardware for the exact model. A stronger grade-8 bolt can transfer the next shock into a shaft or gearcase; a random soft bolt may fail below the intended load. Both substitutions corrupt the protection strategy.
Before applying the 921045 torque value, confirm the machine is actually in the 05135600C-covered generation. For 921024, use its matched 04855000D information instead of borrowing a number from 921045.
Back to the exact model hub →Retest without creating a second problem
After clearing the cause and installing the correct bolt, rotate/inspect the attachment as the matched manual allows before powering it. There should be no obvious bind through part of the rotation.
Run the first powered attachment test with no snow and nobody in the discharge path. If the new bolt shears immediately, shut down and stop consuming pins—the no-load failure is strong evidence for deeper mechanical inspection.
If unloaded operation is normal, use a light controlled snow pass. A bolt that now survives normal snow but later breaks on a hard object is behaving very differently from one that repeatedly fails in ordinary load; preserve that distinction for service.
Make sure this is the right symptom
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Ariens Deluxe 24 (921069): auger not turning · Troy-Bilt Storm 2410 family: auger not turning.
Model-specific notes
- The protective goal is not to make the shear connection unbreakable; it is to let the correct sacrificial hardware protect more expensive components under severe impact.
- Ariens 05135600C also says to replace shear bolts if an obstruction stops auger rotation and the bolts break—clear the obstruction before treating the broken bolt as the whole repair.
Questions people get wrong on this model
Can I use a grade-8 bolt so it stops breaking?
No. A shear fastener is designed to fail before more expensive components. A hardened substitute can transfer impact load elsewhere. A stronger grade-8 bolt can transfer the next shock into a shaft or gearcase; a random soft bolt may fail below the intended load. Do not substitute a grade-8 or other hardened fastener simply because the correct bolt keeps failing.
Is the 7.9–16.5 N·m torque valid for every old Deluxe 24?
No. That figure comes from the matched 921045-generation manual 05135600C. Do not apply it to 921024 or another generation without its own manual. Ariens manual 05135600C gives an installation torque of 7.9–16.5 N·m (5.8–12.2 lb-ft), alternatively tightening until the bolt no longer spins freely, and warns not to overtighten.
What if the correct shear bolt breaks again with the auger apparently clear?
Stop replacing pins. Repeated failure with the correct hardware means there may still be binding, misalignment or deeper driveline damage. Preserve the model/serial and move to the matched legacy service path instead of installing a stronger fastener. If the attachment cannot move through the matched manual’s inspection procedure, the repeated bolt breakage already has a plausible external cause.
