Husqvarna ST224 970528602 Excessive Vibration: Stop and Inspect First

Diagnostic sequence

Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.

How to read this symptom on this model

Excessive vibration is a stop-use symptom because the current Husqvarna ST 224 manual links it to loose parts or damaged augers, while handle movement can also come from handle position or adjustment hardware. Husqvarna’s general safety section separately says that if the product begins to vibrate abnormally, stop the engine and check the cause immediately because vibration is generally a warning of trouble.

The history of an object strike is especially important. The manual tells the operator to stop the engine, disconnect the spark-plug wire and thoroughly inspect for damage after striking a foreign object before restarting. A sudden vibration that begins immediately after a rock, buried branch or frozen debris impact therefore deserves a different level of caution than a loose handle that gradually developed play.

Separate whole-machine vibration from handle movement. If the engine runs smoothly with the auger disengaged but vibration appears when the auger is engaged, rotating snow-handling components deserve more attention. If the visible problem is mainly the handle assembly moving while the machine otherwise sounds normal, check that the handles are locked into position and that the adjustment-lever nuts are secure—the same two handle branches listed in the troubleshooting table.

Visible auger damage is a stop point, not a balancing experiment. Husqvarna tells the owner to replace damaged parts and to contact an authorized service center if vibration remains after fasteners are tightened or damaged parts are addressed. The operator manual does not provide a procedure for bending an auger back into balance or running it at speed to see whether vibration “wears in.”

Also distinguish normal engine vibration from a new change. A two-stage gas snow blower will never be vibration-free, so the useful evidence is a sudden increase, a new rhythmic shake, movement that appears only with the auger engaged or handle hardware that visibly shifts. Recording those conditions prevents a technician from having to reproduce a vague “it vibrates” complaint.

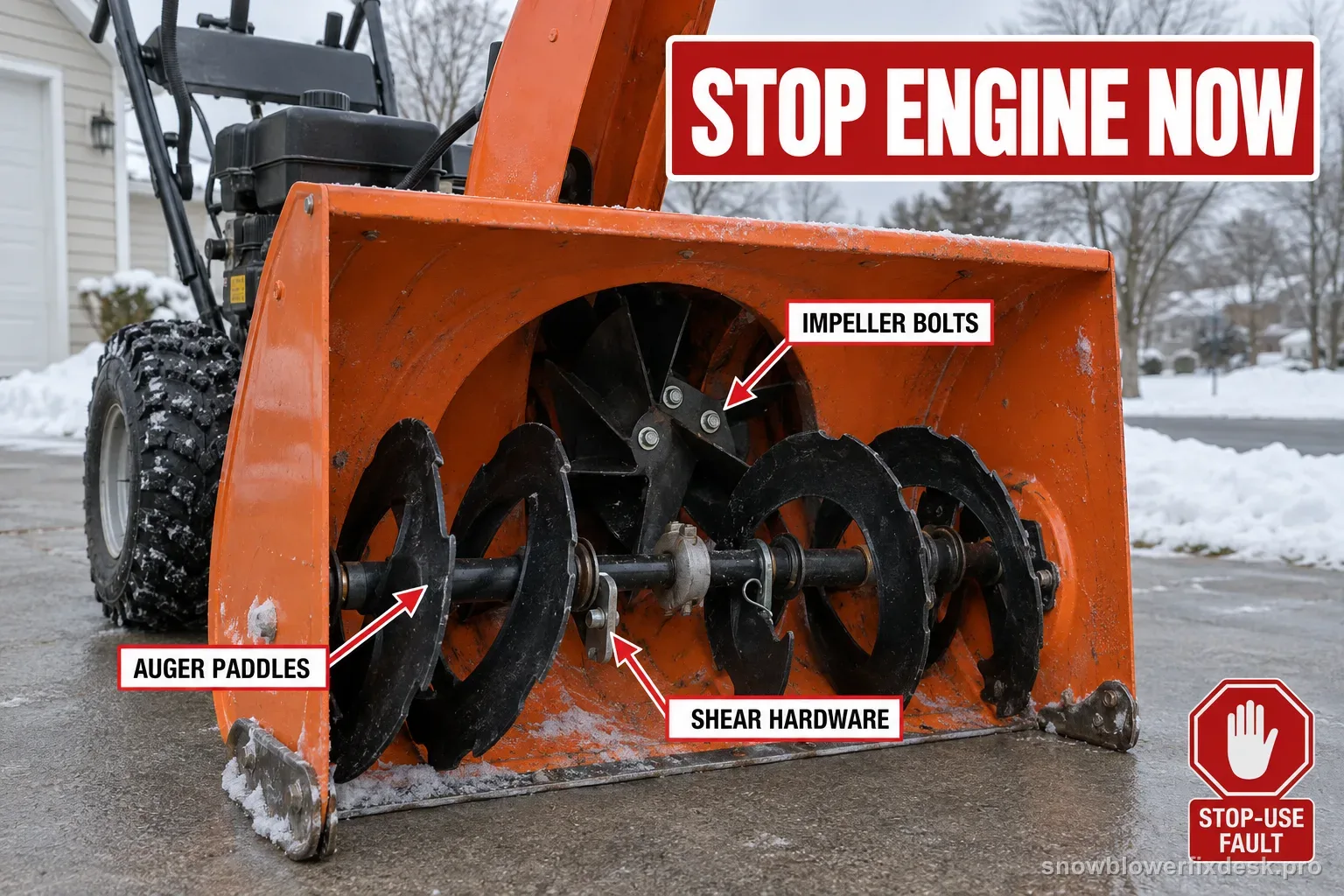

Treat a sudden vibration after impact as a stop-use event. Shut the engine off, remove the key and inspect accessible auger sections, impeller area and fasteners only after all movement stops. A bent or cracked rotating part can continue to spin while being badly out of balance, so the fact that snow still comes out is not evidence that the machine is safe. Do not straighten a visibly damaged auger in place or keep running it to see whether the vibration “works itself out.”

Handle movement should be separated from rotating vibration. Husqvarna lists handle position and adjustment hardware as their own causes, so verify that the handles are correctly seated and the relevant nuts are secure before assuming the auger is damaged. If tightening a clearly loose handle connection removes the movement and the rotating system remains smooth, keep that result separate. If vibration remains through the housing even with the handle setup correct, return attention to rotating components.

The final retest should be conservative. After only obvious loose hardware or a manufacturer-approved replaceable damaged part is corrected, start the machine in an open area and observe briefly without feeding snow. If strong vibration returns, shut down immediately and use authorized service. Bring the 970528602 identity, whether the problem followed an impact, what was visibly damaged and whether the vibration occurs with the auger disengaged or only when engaged; those details are more useful than prolonged powered testing.

Separate handle movement from vibration that follows auger engagement. Husqvarna lists handle position and loose adjustment nuts alongside loose parts or damaged augers, so first secure the handle assembly with the machine off. If the handle becomes stable but strong vibration returns only when the auger is engaged, the rotating attachment remains suspect and the machine should be taken out of service. If vibration is present even before auger engagement, record that too. The exact operating condition that triggers vibration is useful service evidence and avoids treating every shake as a loose-handle problem.

Retest without creating a second problem

Only after a verified external cause is corrected and every guard is restored should you make a brief unloaded test from the operator position. Start with the auger disengaged and note whether the engine/handle behavior is normal, then engage the auger only long enough to determine whether the abnormal vibration is gone.

If the vibration returns with auger engagement, release the control, shut down and disconnect the spark-plug cable again. Do not proceed to a full snow-clearing pass. That repeatable on/off difference is useful service evidence and is safer than continuing to load a suspect rotating assembly.

If the symptom was handle movement, verify the handles remain locked and the adjustment hardware stays secure after the brief test. Any renewed loosening, shifting or abnormal vibration keeps the machine out of service until the cause is corrected. The pass condition is stable hardware and no abnormal vibration—not simply that the machine still throws snow.

Model-specific notes

• A vibration guide is deliberately more conservative than a normal performance guide because rotating damage can escalate quickly.
• Do not power-test with covers removed or anyone in the discharge path.
