Ariens Deluxe 24 921069 Electric Start Not Working: Power, Cord or Starter Circuit?
Separate a bad power/cord setup from an Ariens-listed electric-start circuit fault without overheating the 120V starter.
Applies to Deluxe 24 (921069)
Identifiers: 921069 · Deluxe 24
Engine ID: Ariens AX 252cc current specification — verify engine label for parts
Guide scope: Applies to Ariens model 921069, serial 000101+, under operator manual 30219300A.
Operator manual 30219300A identifies model 921069 serial 000101+. Current Ariens product data lists AX 252cc; keep the serial number and engine label with the machine before engine-specific parts.
If recoil starting works but the electric start does not, first verify the required grounded 120V cord/outlet and the manual start sequence. Ariens sends a nonfunctioning starter circuit to dealer repair rather than an owner wiring bypass.
Use the electric starter only with a grounded 120V three-wire outlet and an outdoor-rated cord. Never open, bypass or jumper the starter circuit while the machine is connected to power.
Diagnostic sequence
Work in order. The early checks are intentionally low-disassembly and model-specific; stop once the symptom changes or the fault is confirmed.
Confirm model and symptom split
Why this check: This is an electric-start-path guide, not a generic engine no-start guide.
What to do: Verify model 921069 / serial 000101+. If the engine starts normally with the recoil handle but not the electric button, preserve that distinction.

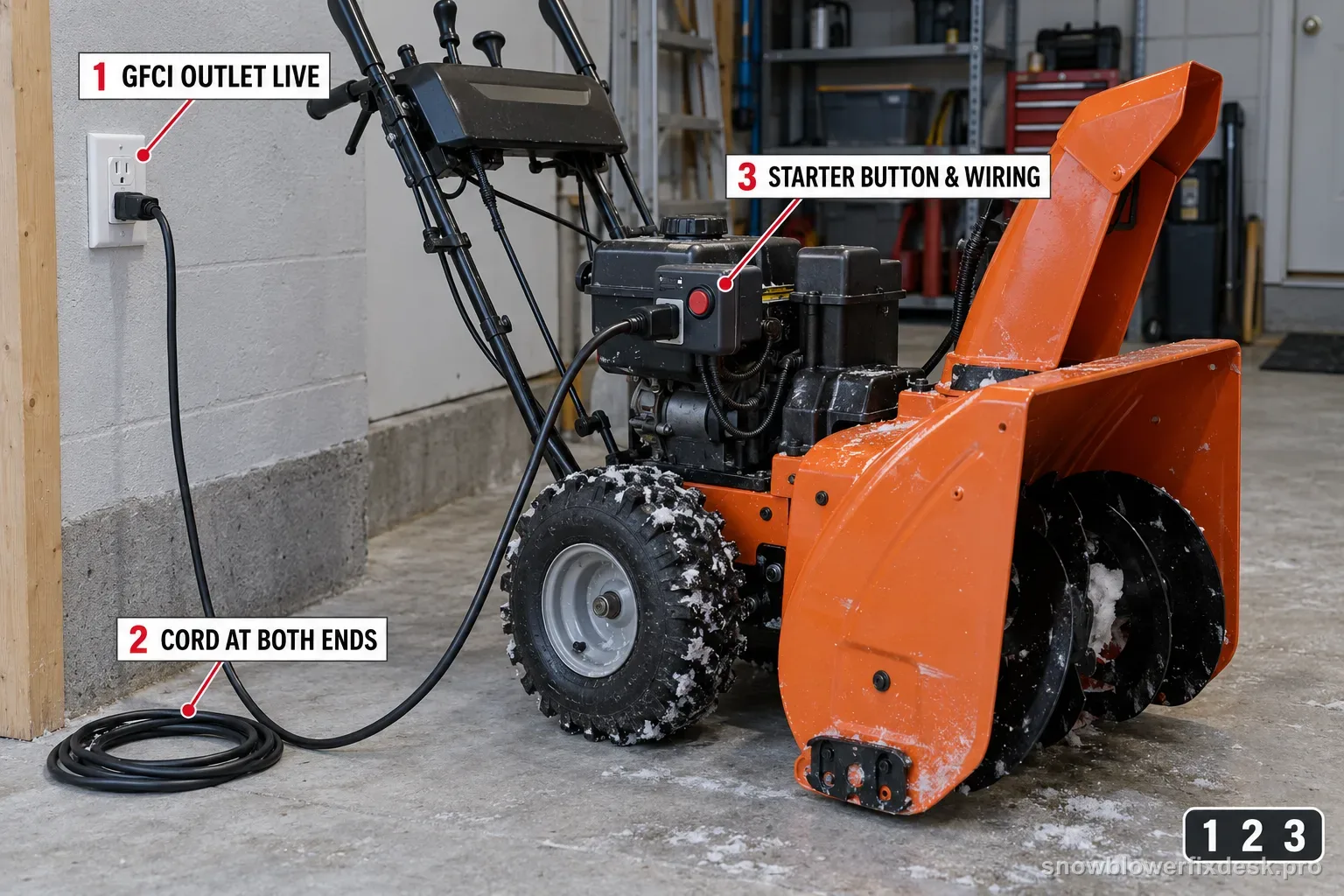

Check the cord and grounded outlet
Why this check: Ariens requires a UL-listed or CSA-certified grounded outdoor cord rated at least 13 amps and a 120V three-wire grounded outlet.
What to do: Inspect the cord for damage, connect it to the starter first and then to the outlet, and use a known-good grounded source. Do not use a damaged cord or improvised adapter.
Repeat the normal start controls
Why this check: The electric motor can crank correctly while the engine still cannot fire if key, choke, fuel valve or throttle are wrong.
What to do: Set the normal cold-start controls exactly as the operator manual specifies before interpreting the electric starter as failed.
Respect the starter duty cycle
Why this check: Ariens warns that long cranking can overheat and damage the starter.
What to do: Hold the start button no more than five seconds and wait at least one minute between attempts. Do not use repeated cranking as a diagnostic test.
Starter circuit still dead = service boundary
Why this check: The troubleshooting table routes a nonfunctioning ignition-switch starter circuit to dealer repair.
What to do: If power/cord/start setup is correct and the electric starter remains inactive, unplug the machine and use an Ariens dealer rather than bypassing switches or wiring.
Use recoil start as a comparison, not a bypass
Why this check: A working recoil system can show that the engine can still crank while the 120 V electric-start path remains faulty.
What to do: With normal starting controls set, compare whether recoil turns the engine. If recoil works and the electric starter remains dead after cord/outlet and duty-cycle checks, keep the fault on the electric circuit and do not jumper the switch.
How to read this symptom on this model
The useful split is whether the engine can be started by recoil. If recoil works but the electric button does not, the engine fuel/ignition path has already provided different evidence than a complete no-start. The Ariens unit manual then gives you owner-level checks around the 120V connection and a clear service boundary for a nonfunctioning starter circuit.
Do not use repeated long cranking to make the fault easier to observe. The five-second limit and one-minute pause are part of the diagnosis because a healthy starter can be damaged while troubleshooting a separate engine problem.
On model 921069 serial 000101+, the electric-start system is 120 V and the operator manual specifies a three-wire grounded outlet. It also requires a UL-listed or CSA-certified grounded cord rated for at least 13 amps and suitable for outdoor use. A missing/incorrect power source or cord therefore belongs ahead of a starter replacement.
Use the recoil starter as a diagnostic comparison, not as proof that the electric hardware is healthy. If recoil cranks and starts the engine normally while the electric button produces no crank, the symptom is isolated to the electric-start supply/circuit branch much more strongly than to fuel, choke or spark. If neither method can rotate the engine normally, do not assume an electric-starter-only fault.
Ariens limits each electric-start button press to five seconds and requires at least one minute between attempts to reduce starter overheating risk. Repeatedly holding the button longer does not improve diagnosis; it can create a second failure and blur whether the original problem was power supply, circuit or engine start condition.
The no-start table sends a nonfunctioning ignition-switch starter circuit to dealer repair. Keep that boundary intact. Do not bypass the switch, jumper unknown terminals or defeat grounding in order to prove the starter motor works. The machine still has a recoil system for controlled comparison while the electric circuit remains untouched.
This complaint becomes much clearer when recoil starting is used only as a comparison. If the recoil handle turns the 921069 engine normally but the 120 V button path remains inactive, the evidence stays with the cord, outlet, starter circuit, or starter hardware; it does not prove a fuel or carburetor fault. If both starting methods turn the engine but it never fires, leave this electric-start article and use the engine no-start path instead.
The extension-cord requirement is part of the diagnosis, not a shopping footnote. Ariens calls for a grounded outdoor cord and a grounded three-wire 120 V source, so a damaged cord, poor connection, or unsuitable supply can imitate a failed starter before the machine is opened. Connect in the manual order, keep adapters and bypasses out of the test, and record whether the starter is silent, intermittent, or actually cranks the engine.
Starter duty cycle gives this page a hard stop. A five-second attempt followed by the required cooling interval protects the starter and keeps heat from becoming a new variable. After a known-good supply, correct start controls, and a compliant attempt still leave the electric circuit dead, dealer diagnosis is the useful next step. Arrive with model 921069, serial number, cord/outlet result, recoil comparison, and whether the starter made any sound at all.
Use the recoil starter as a comparison only after the machine is prepared for a normal start. If recoil cranks and starts the engine but the electric starter does not turn it, keep the fault on the cord/outlet/starter side and stop adding fuel or primer. If the electric starter turns the engine at normal speed but the engine never fires, the electric motor has done its job and continue with the no-start checks. This one observation prevents a working electric starter from being replaced because the engine would not combust. It also avoids treating a dead electric-start circuit as though more choke or a different spark plug could make the starter motor spin.
Before you order parts
Before ordering a starter, switch or cord, verify the exact model/serial, the required outdoor grounded cord, the outlet and the connection order. If the recoil method starts the engine and the electric circuit remains dead with correct power, the manufacturer troubleshooting table sends that circuit to dealer repair rather than publishing an owner bypass test.
Before buying a starter or switch, confirm 921069 / SN 000101+, a proper 120 V grounded outlet, the specified outdoor cord class, connector condition and whether the recoil starter turns the engine normally. A successful recoil start plus a dead electric crank is useful circuit evidence; a dead engine under both methods requires a different diagnosis.
Back to the exact model hub →Retest without creating a second problem
After correcting only a cord/outlet/setup issue, make one normal electric-start attempt within the manual duty cycle. If the starter still does not respond, unplug it and preserve the recoil-versus-electric symptom for the service technician.
After correcting a cord/outlet or connection issue, connect the cord to the starter first and then the grounded outlet as the manual specifies. Keep each button press under five seconds and wait at least one minute between attempts. Once the engine starts, disconnect from the outlet and then from the starter; do not leave the machine plugged in between tests.
Make sure this is the right symptom
If your machine is showing an adjacent symptom instead, switch paths before changing parts: won't start · starts hard or runs poorly.
The same search phrase can lead to a different branch on another machine. Compare the nearest model-specific examples: Toro Power Clear 721 E (38753): electric starter not working · Toro Power Clear 721 QZE (38756): electric starter frozen or not working.
Model-specific notes
- A recoil-starting engine with a dead electric starter points to a different branch than an engine that will not start by either method.
- The operator manual lists the electric-start button on model 921069 and provides a specific starter-circuit dealer-repair boundary.
Questions people get wrong on this model
Can I use a normal indoor extension cord?
Use the cord specification in the Ariens manual: grounded, outdoor-use, UL-listed or CSA-certified, at least 13 amps. After correcting only a cord/outlet/setup issue, make one normal electric-start attempt within the manual duty cycle. Before ordering a starter, switch or cord, verify the exact model/serial, the required outdoor grounded cord, the outlet and the connection order.
Should I bypass the starter switch to test the motor?
No. Ariens routes a nonfunctioning starter circuit to dealer repair; this guide does not provide mains-voltage bypass instructions. If the recoil method starts the engine and the electric circuit remains dead with correct power, the manufacturer troubleshooting table sends that circuit to dealer repair rather than publishing an owner bypass test.
What does it mean if recoil start turns the engine normally but the electric starter does not?
That comparison makes an electric-start circuit problem more plausible because the engine is still able to crank mechanically. It does not justify bypassing the starter switch or grounding; use the matched 120 V starter checks and service boundary. Before buying a starter or switch, confirm 921069 / SN 000101+, a proper 120 V grounded outlet, the specified outdoor cord class, connector condition and whether the recoil starter turns the engine normally.
